帶電阻搖擺試驗機

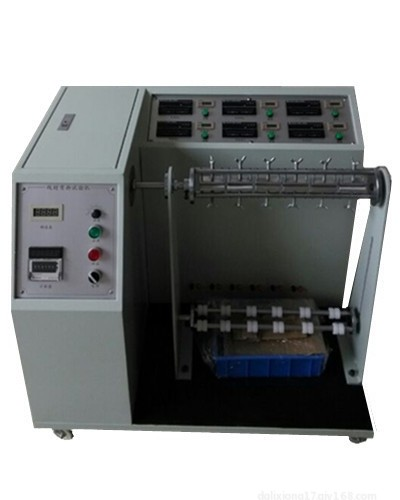

                                      圖片僅供參考

一，產品簡介(Products Profile)：
        耳機線電阻彎折試驗機專門試驗插頭引出線及電線之耐折強度及電阻變化，電阻超上限或低于下限可以自動停機。本機是將試樣固定在夾具上，并加一定荷重，試驗時夾具左右擺動，經一定次數后檢視其斷線率，或至電阻超出設定上下限值時查看其總計擺動次數。本機能自動計數，試樣彎折至斷線或電阻超限時，并能自動停止操作，可選擇超限單組停止或超限整機停止，方便采集分析。 本機符合UL817等有關標準“軟線組件和電源軟線通用安全要求”的規定及《頭戴耳機通用技術標準GB/T14471》線材彎折測試。
        The earphone cable resistance bending test machine is specially designed to test the bending strength and resistance change of the lead wire and wire of the plug. If the resistance exceeds the upper limit or falls below the lower limit, it can be automatically shut down. This machine fixes the sample on the fixture and adds a certain load. During the test, the fixture swings left and right. After a certain number of times, the disconnection rate is checked, or the total number of swings is checked when the resistance exceeds the set upper and lower limits. The machine can automatically count, when the sample is bent to the broken line or the resistance exceeds the limit, and can automatically stop the operation, you can choose to stop the single group overrun or the whole machine overrun, which is convenient for collection and analysis. This machine complies with the provisions of UL817 and other relevant standards "General Safety Requirements for Flexible Cord Components and Power Cords" and the "wire headset general technical standard GB / T14471" wire bending test.

二，技術參數(Technical Specification):
       1、試驗工位(Test station)：六組（同時測試）Six groups (Test at the same time)
       2、彎折角度(Bent angle): 0-±90°（刻度表盤加指示針指示，可調）Dial with pointer indicator, adjustable
       3、彎折角度顯示及調節：指示針指示刻度表盤，可調節偏心軸 Bent angle displays&adjusts: Pointer indicates dial,which adjusts eccentric shaft.
       4、試驗速度：10-60次/分（旋鈕調速，LCD數字顯示） Test Speed：10-60 times/mins (Knob speed,LCD disgital display)
       5、搖擺次數總計數器：0-999999次（可預置，達到次數自動停止，斷電記憶功能） Swing times total table: 0-999999 times(Can be preset, automatically stop when reaching certain times, power off memory function)
       6、搖擺導通計數器：0-999999次（導通分別自動計數，其中一組斷開，對應組自動停止計數） Swing conduction counter: 0-999999 times( Count apart automatically, one group is disconnected, the corresponding group automatically stops counting)
       7、電阻測量范圍0-99.99歐姆（六組分別測量，可設置上下限停止計數/停機） Resistance measuring range 0-99.99Ω (Six groups measure separately,Can set upper/Lower limit to stop counting/Shut down)
       8、停機方式：電阻超限停機，可切換單根超限停機及6組超限停機 Stop mode: If Resistance overruns shutdown, it can switch single root overrun and 6 groups overrun.
       9、帶鉤砝碼：50、100、200、300、500g各六個 Hook weight: 50、100、200、300、500g Each 6pcs
      10、手柄試驗夾具：六組防滑、不易損壞試料特制夾具 Handle test fixture: Six sets -- special jigs for anti-skid and not easily damaged samples
       11、試驗固定桿：可上下調整，固定產品下端，試驗更符合標準 Test fixed rod: Can adjust up and down,Fix low end of product, test can be more standards compliant.
       12、機臺尺寸（L×W×H）：850×600×750mm Machine size(L*W*H): 850*600*750mm
       13、機臺重量：70kg Machine weight: 70kg
       14、工作電源：AC220V 、50HZ Working power: AC220V、50HZ

三，產品特點(Product Features)：
       1、本機箱體采用靜電烤漆處理，根據各類標準進行設計，整機設計合理，結構緊固，運行安全、穩定、準確； The cabinet body is dealed with electrostatic baking paint and designed according to various standards. The whole machine is designed reasonably, the structure is tight, and the operation is safe, stable and accurate;
       2、試驗次數計數器可預置，試驗導通數器自動計數，達到次數，機器自動停止，具有斷電記憶功能，方便實用； The test counters can be preset, the test conduction counter automatically counts, the number of times reached, the machine automatically stops,power off memory function,Convenient and practical.
       3、試驗速度旋鈕可調，LCD顯示，客戶根據自己要求設定，人性化設計； Test speed is adjustable knob, LCD display,Customers set as they requires,humanized design.
       4、彎折角度手動可調，指示針指示刻度表盤，能夠更好的調節； Bend angle can be adjusted with hand,Pointer indicates dial and adjusts more better.
       5、六組工位同時工作，互不影響，分別計數，其中一組斷線，對應計數器停止計數，機器照常試驗，提高測試效率； Six groups station works at the same time,Do not affect each other, count separately, one group is broken, the corresponding counter stops counting, the machine is tested as usual, and the test efficiency is improved;
       6、六組防滑、不易損壞試料特制手柄具，夾持產品更方便、快捷； Six sets-- special handles with anti-skid, not easy to damage the sample, clamping products more convenient and fast;
       7、試驗固定桿可上下調整，根據標準要求制作，試驗效果更佳； The test fixed rod can be adjusted up and down, Be made according to the requirements, the test effect is better;
       8、配置帶鉤荷重砝碼，可多個疊加，懸掛更為方便。 Equipped with hook load weight, which can be superimposed for more convenient suspension.
